多级泵当前位置: 消防成套设备 > 消防泵及其他水泵 > 多级泵 >

DL立式多级离心泵

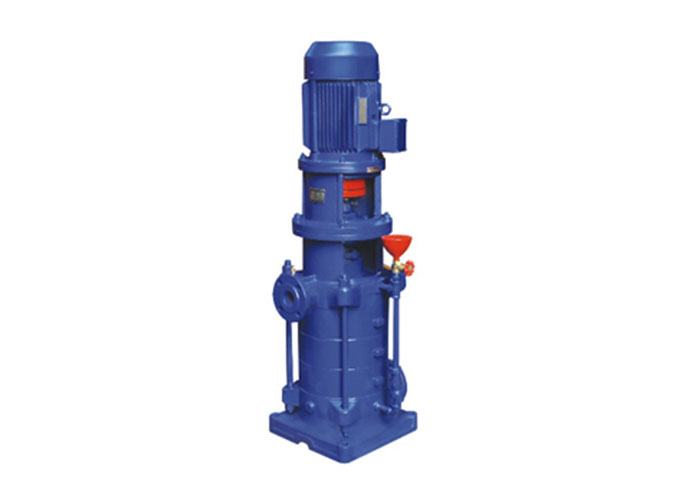

DL立式多级离心泵

一、DL立式多级离心泵描述:

  DL、DLR立式多级离心泵（低转速n=1450r/min）是本公司根据高层建筑给水市场的实际需要和国家消防局GB 6245-1998《消防泵性能要求和试验方法》标准而研制开发的新型产品。供输送不含坚硬颗粒及物理化学改选类似于水的介质之用。流量范围为5～400m3/h，扬程范围为22～300m，配套功率范围为1.5～250KW,口径范围为φ40～φ200mm。同一台泵的出口可设1～5个出口。


二、DL立式多级离心泵应用范围:

  DL立式多级离心泵用于高层建筑生活给水、消防恒压供水、自动喷淋供水、自动水幕供水等，也可应用于厂矿给排水、运距离送水，各种设备配套使用以及各种生产工艺用水等。


三、DL立式多级离心泵结构特点:

  DL立式多级离心泵采用国内优秀高效节能的水力模型，具有效率高，性能曲线平缓，运行范围广，符合消防局的有关规定，能满足不同用户的使用需要；该泵采用立式分段式结构，具有运转平稳、噪音低、使用寿命长、占地面积少、安装维护方便等优点。


四、DL立式多级离心泵型号参数:


型号 级数 流量 扬程
(m)		 效率
(%)		 转速
(r/min)		 电机功率
(kw)
(m3/h) (L/s)
40DL6-12

40DLR6-12
 		 2 4.9
6.2
7.4		 1.36
1.72
2.06		 24.8
23.6
21.6		 37
40
39		 1450 1.5
3 4.9
6.2
7.4		 1.36
1.72
2.06		 37.2
35.4
32.4		 37
40
39		 2.2
4 4.9
6.2
7.4		 1.36
1.72
2.06		 49.6
47.2
43.2		 37
40
39		 3.0
5 4.9
6.2
7.4		 1.36
1.72
2.06		 62.0
59.0
54.0		 37
40
39		 4.0
6 4.9
6.2
7.4		 1.36
1.72
2.06		 74.4
70.8
64.8		 37
40
39		 4.0
7 4.9
6.2
7.4		 1.36
1.72
2.06		 86.8
82.6
75.2		 37
40
39		 5.5
8 4.9
6.2
7.4		 1.36
1.72
2.06		 99.2
94.4
86.4		 37
40
39		 5.5
9 4.9
6.2
7.4		 1.36
1.72
2.06		 111.6
106.2
97.6		 37
40
39		 7.5
10 4.9
6.2
7.4
 		 1.36
1.72
2.06
 		 124.0
118.0
108.8
 		 37
40
39
 		 7.5
11 4.9
6.2
7.4		 1.36
1.72
2.06		 136.4
129.8
120.0		 37
40
39		 7.5
50DL12-12.5
50DLR12-12.5
 		 2 9.0
12.6
18.0		 2.5
3.5
5.0		 27.0
25.0
22.0		 47
55
58		 1450 3.0
3 9.0
12.6
18.0		 2.5
3.5
5.0		 40.5
37.5
33.0		 47
55
58		 3.0
4 9.0
12.6
18.0		 2.5
3.5
5.0		 54.0
50.0
44.0		 47
55
58		 4.0
5 9.0
12.6
18.0		 2.5
3.5
5.0		 67.5
62.5
55.0		 47
55
58		 5.5
6 9.0
12.6
18.0		 2.5
3.5
5.0		 81.0
75.0
66.0		 47
55
58		 5.5
7 9.0
12.6
18.0		 2.5
3.5
5.0		 94.5
87.5
77.0		 47
55
58		 7.5
8 9.0
12.6
18.0		 2.5
3.5
5.0		 108.0
100.0
88.0		 47
55
58		 7.5
9 9.0
12.6
18.0		 2.5
3.5
5.0		 121.5
112.5
99.0		 47
55
58		 11.0
10 9.0
12.6
18.0		 2.5
3.5
5.0		 135.0
125.0
110.0		 47
55
58		 11.0
65DL30-16
65DLR30-16
 		 2 18.0
30.0
35.0		 5.00
8.33
9.72		 37.0
32.0
29.0		 56
62
60		 1450 5.5
3 18.0
30.0
35.0		 5.00
8.33
9.72		 55.5
48.0
43.5		 56
62
60		 7.5
4 18.0
30.0
35.0		 5.00
8.33
9.72		 74.0
64.0
58.0		 56
62
60		 11.0
5 18.0
30.0
35.0		 5.00
8.33
9.72		 92.5
80.0
72.5		 56
62
60		 15.0
6 18.0
30.0
35.0		 5.00
8.33
9.72		 111.0
96.0
87.0		 56
62
60		 15.0
7 18.0
30.0
35.0		 5.00
8.33
9.72		 129.5
112.0
101.5		 56
62
60		 18.5
8 18.0
30.0
35.0		 5.00
8.33
9.72		 148.0
128.0
116.0		 56
62
60		 22.0
9 18.0
30.0
35.0		 5.00
8.33
9.72		 166.5
144.0
130.5		 56
62
60		 22.0
10 18.0
30.0
35.0		 5.00
8.33
9.72		 185.0
160.0
145.0		 56
62
60		 30.0
80DL50-20
80DLR50-20
 		 2 32.4
50.0
65.2		 9.00
14.0
18.1		 43.2
40.0
34.2		 60
70
66		 1450 11.0
3 32.4
50.0
65.2		 9.00
14.0
18.1		 64.8
60.0
51.3		 60
70
66		 15.0
4 32.4
50.0
65.2		 9.00
14.0
18.1		 86.4
80.0
68.4		 60
70
66		 22.0
5 32.4
50.0
65.2		 9.00
14.0
18.1		 108.0
100.0
85.5		 60
70
66		 30.0
6 32.4
50.0
65.2		 9.00
14.0
18.1		 129.6
120.0
102.6		 60
70
66		 30.0
7 32.4
50.0
65.2		 9.00
14.0
18.1		 151.2
140.0
119.7		 60
70
66		 37.0
8 32.4
50.0
65.2		 9.00
14.0
18.1		 172.8
160.0
136.8		 60
70
66		 45.0
9 32.4
50.0
65.2		 9.00
14.0
18.1		 194.4
180.0
153.9		 60
70
66		 45.0
10 32.4
50.0
65.2		 9.00
14.0
18.1		 216.0
200.0
171.0		 60
70
66		 55.0
100DL72-20
100DLR72-20
 		 2 50.4
72.0
86.4		 14.0
20.0
24.0		 46.0
40.0
36.0		 62
72
71		 1450 15.0
3 50.4
72.0
86.4		 14.0
20.0
24.0		 69.0
60.0
54.0		 62
72
71		 18.5
4 50.4
72.0
86.4		 14.0
20.0
24.0		 92.0
80.0
72.0		 62
72
71		 30.0
5 50.4
72.0
86.4		 14.0
20.0
24.0		 115.0
100.0
90.0		 62
72
71		 37.0
6 50.4
72.0
86.4		 14.0
20.0
24.0		 138.0
120.0
108.0		 62
72
71		 37.0
7 50.4
72.0
86.4		 14.0
20.0
24.0		 157.0
140.0
126.0		 62
72
71		 55.0
8
 		 50.4
72.0
86.4		 14.0
20.0
24.0		 184.0
160.0
144.0		 62
72
71		 55.0
9 50.4
72.0
86.4		 14.0
20.0
24.0		 207.0
180.0
162.0		 62
72
71		 55.0
10 50.4
72.0
86.4		 14.0
20.0
24.0		 230.0
200.0
180.0		 62
72
71		 75.0
100DL100-20
100DLR72-20
 		 2 72.0
100.0
126.0		 20.0
27.8
35.0		 43.0
40.0
34.0		 65
72
70		 1450 18.5
3 72.0
100.0
126.0		 20.0
27.8
35.0		 65.0
60.0
51.0		 65
72
70		 30.0
4 72.0
100.0
126.0		 20.0
27.8
35.0		 86.0
80.0
68.0		 65
72
70		 37.0
5 72.0
100.0
126.0		 20.0
27.8
35.0		 108.0
100.0
85.0		 65
72
70		 45.0
6 72.0
100.0
126.0		 20.0
27.8
35.0		 130.0
120.0
102.0		 65
72
70		 55.0
7 72.0
100.0
126.0		 20.0
27.8
35.0		 151.0
140.0
119.0		 65
72
70		 75.0
8 72.0
100.0
126.0		 20.0
27.8
35.0		 173.0
160.0
136.0		 65
72
70		 75.0
9 72.0
100.0
126.0		 20.0
27.8
35.0		 195.0
180.0
153.0		 65
72
70		 90.0
100DL100-20
100DLR100-20		 10 72.0
100.0
126.0		 20.0
27.8
35.0		 217.0
200.0
170.0		 65
72
70		 1450 90.0
125DL125-20
125DLR125-20		 2 90.0
126.0
140.0		 25.0
35.0
38.0		 45.0
40.0
36.0		 68
72
71		 1450 22.0
3 90.0
126.0
140.0		 25.0
35.0
38.0		 67.0
60.0
54.0		 68
72
71		 30.0
4 90.0
126.0
140.0		 25.0
35.0
38.0		 90.0
80.0
72.0		 68
72
71		 45.0
5 90.0
126.0
140.0		 25.0
35.0
38.0		 112.0
100.0
90.0		 68
72
71		 55.0
6 90.0
126.0
140.0		 25.0
35.0
38.0		 135.0
120.0
108.0		 68
72
71		 75.0
7 90.0
126.0
140.0		 25.0
35.0
38.0		 157.0
140.0
126.0		 68
72
71		 75.0
8 90.0
126.0
140.0		 25.0
35.0
38.0		 180.0
160.0
144.0		 68
72
71		 90.0
9 90.0
126.0
140.0		 25.0
35.0
38.0		 202.0
180.0
162.0		 68
72
71		 110.0
10 90.0
126.0
140.0		 25.0
35.0
38.0		 224.0
200.0
180.0		 68
72
71		 132.0
150DL150-20
150DLR150-20		 2 108.0
150.0
180.0		 30.0
41.6
50.0		 45.0
40.0
34.0		 75
80
78		 1450 30.0
3 08.0
150.0
180.0		 30.0
41.6
50.0		 67.0
60.0
51.0		 75
80
78		 37.0
4 08.0
150.0
180.0		 30.0
41.6
50.0		 90.0
80.0
68.0		 75
80
78		 45.0
5 08.0
150.0
180.0		 30.0
41.6
50.0		 112.0
100.0
85.0		 75
80
78		 55.0
6 08.0
150.0
180.0		 30.0
41.6
50.0		 135.0
120.0
102.2		 75
80
78		 75.0
7 08.0
150.0
180.0		 30.0
41.6
50.0		 157.0
140.0
119.0		 75
80
78		 90.0
8 08.0
150.0
180.0		 30.0
41.6
50.0		 180.0
160.0
135.0		 75
80
78		 90.0
9 08.0
150.0
180.0		 30.0
41.6
50.0		 202.0
180.0
153.0		 75
80
78		 110.0
10 08.0
150.0
180.0		 30.0
41.6
50.0		 224.0
200.0
171.0		 75
80
78		 132.0
150DL160-25
150DLR160-25		 2 120.0
160.0
200.0		 33.3
44.4
55.6		 53.0
50.0
44.0		 72
76
73		 1450 37.0
3 120.0
160.0
200.0		 33.3
44.4
55.6		 79.0
75.0
66.0		 72
76
73		 55.0
4 120.0
160.0
200.0		 33.3
44.4
55.6		 106.0
100.0
88.0		 72
76
73		 75.0
5 120.0
160.0
200.0		 33.3
44.4
55.6		 133.0
125.0
110.0		 72
76
73		 90.0
6 120.0
160.0
200.0		 33.3
44.4
55.6		 159.0
150.0
132.0		 72
76
73		 110.0
7 120.0
160.0
200.0		 33.3
44.4
55.6		 186.0
175.0
154.0		 72
76
73		 132.0
8 120.0
160.0
200.0		 33.3
44.4
55.6		 212.0
200.0
176.0		 72
76
73		 132.0
9 120.0
160.0
200.0		 33.3
44.4
55.6		 239.0
225.0
198.0		 72
76
73		 160.0
150DL160-25
150DLR160-25		 10 120.0
160.0
200.0		 33.3
44.4
55.6		 266.0
250.0
220.0		 72
76
73		 1450 185.0
200DL280-30
200DR280-30
 		 2 196.0
280.0
336.0		 54.4
77.8
93.3		 62.0
60.0
55.0		 70
80
79		 1450 90.0
3 196.0
280.0
336.0		 54.4
77.8
93.3		 93.0
90.0
82.0		 70
80
79		 110.0
4 196.0
280.0
336.0		 54.4
77.8
93.3		 124.0
120.0
109.0		 70
80
79		 132.0
5 196.0
280.0
336.0		 54.4
77.8
93.3		 155.0
150.0
136.0		 70
80
79		 185.0
6 196.0
280.0
336.0		 54.4
77.8
93.3		 186.0
180.0
163.0		 70
80
79		 220.0
200DL300-20
200DLR300-20		 2 210.0
300.0
360.0		 28.3
83.3
100.0		 45.0
40.0
36.0		 70
80
79		 1450 55.0
3 210.0
300.0
360.0		 28.3
83.3
100.0		 65.0
60.0
54.0		 70
80
79		 75.0
4 210.0
300.0
360.0		 28.3
83.3
100.0		 86.0
80.0
72.0		 70
80
79		 110.0
5 210.0
300.0
360.0		 28.3
83.3
100.0		 45.0
40.0
36.0		 70
80
79		 132.0
6 210.0
300.0
360.0		 28.3
83.3
100.0		 65.0
60.0
54.0		 70
80
79		 160.0
200DL350-25
200DLR350-25		 2 245.0
350.0
420.0		 68.0
97.2
116.7		 51.0
50.0
46.0		 70
80
79		 1450 75.0
3 245.0
350.0
420.0		 68.0
97.2
116.7		 77.5
75.0
68.5		 70
80
79		 110.0
4 245.0
350.0
420.0		 68.0
97.2
116.7		 104.0
100.0
91.0		 70
80
79		 160.0
5 245.0
350.0
420.0		 68.0
97.2
116.7		 130.5
125.0
113.5		 70
80
79		 200.0
6 245.0
350.0
420.0		 68.0
97.2
116.7		 157.0
150.0
136.0		 70
80
79		 220.0
200DL300-25
200DLR300-25		 2 245.0
350.0
420.0		 68.0
97.2
116.7		 61.2
60.0
55.2		 70
80
79		 1450 90.0
3 245.0
350.0
420.0		 68.0
97.2
116.7		 93.0
90.0
82.2		 70
80
79		 132.0
4 245.0
350.0
420.0		 68.0
97.2
116.7		 124.8
120.0
109.2		 70
80
79		 160.0
5 245.0
350.0
420.0		 68.0
97.2
116.7		 61.2
60.0
55.2		 70
80
79		 200.0
6 245.0
350.0
420.0		 68.0
97.2
116.7		 93.0
90.0
82.2		 70
80
79		 250.0
200DL400-20
200DLR400-20		 2 280.0
400.0
480.0		 77.8
111.1
133.3		 42.0
40.0
36.0		 70
80
79		 1450 75.0
3 280.0
400.0
480.0		 77.8
111.1
133.3		 63.0
60.0
54.0		 70
80
79		 110.0
4 280.0
400.0
480.0		 77.8
111.1
133.3		 84.0
80.0
72.0		 70
80
79		 160.0
5 280.0
400.0
480.0		 77.8
111.1
133.3		 105.0
100.0
90.0		 70
80
79		 185.0
6 280.0
400.0
480.0		 77.8
111.1
133.3		 126.0
120.0
108.0		 70
80
79		 220.0


热门文章
