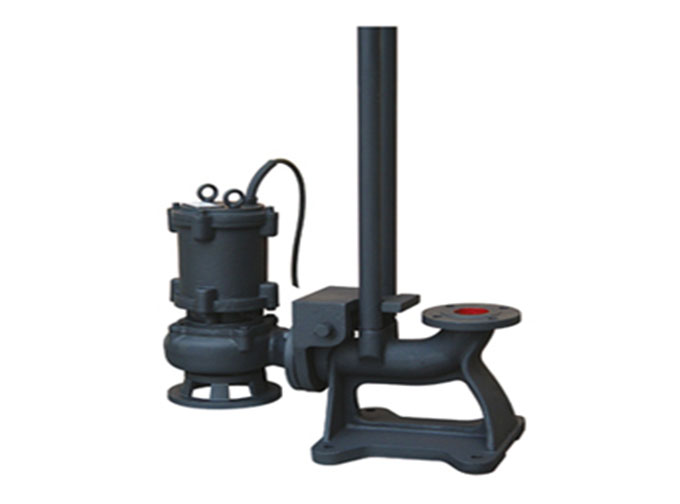

一、WQ无堵塞固定式潜水排污泵产品描述：
WQ无堵塞固定式潜水排污泵，是本公司根据用户实际的要求以及安装使用条件、方式的不同，结合本公司多年的实际经验，进行合理优化设计而成，本系列产品具有安装使用方便，结构合理，产品形式多样等特点。
二、WQ无堵塞固定式潜水排污泵应用范围：
WQ无堵塞固定式潜水排污泵适用用于工厂商业严重污染废水的排放、住宅区的污水排污站、城市污水处理厂排水系统、人防系统排水站、自来水厂的给水设备、医院、宾馆的污水排放、市政工程建筑工地、矿山配套附机、农村沼气池、农田灌溉等行业，输送带颗粒的污水，污物，也可用于清水及带弱腐蚀性介质。
三、WQ无堵塞固定式潜水排污泵适用条件：
1.排污泵系列产品在额定电压为380V，电源频率为50Hz时适
2.介质温度不超过40摄氏度，介质密度≤1150kg/m3,PH值在5-9范围之间
3.海拔高度不超过1000米
4.输送介质年粘度不超1000CP
5.产品工作运行时必须完全潜入水中，但潜水深度不得超过10m
6.产品材质主要为铸铁，不能用于强腐蚀性或含有强腐蚀性的介质中
四、WQ无堵塞固定式潜水排污泵结构特点：
1.采用双叶片叶轮结构，大大提高了污物的通过能力
2.机械密封采用新型磨檫副，并长期处入油室内运行
3.整体结构紧凑、体积小、噪声小、节能效果显著，检修方便，方便用户更换
4.自动控制柜可以根据所需液位变化，自动控制泵的超动与停止，不需专人看管，使用极为方便
5.可根据用户需要配备安装方式，它给安装、维修到来极大的方便，人可不必此为而进入污水坑
6.能够在设计范围内使用，而保证电机不会过载
五、WQ无堵塞固定式潜水排污泵型号参数：
|
口径 mm |
型号 |
流量 m3/h |
扬程 m |
转速 r/min |
功率 kw |
| 25 | 25WQ(QW/YW)2-10-0.37 | 2 | 10 | 2900 | 0.37 |
| 25WQ(QW/YW)4-10-0.55 | 4 | 10 | 2900 | 0.55 | |
| 25WQ(QW/YW)6-10-0.75 | 6 | 10 | 2900 | 0.75 | |
| 25WQ(QW/YW)6-15-1.1 | 6 | 15 | 2900 | 1.1 | |
| 25WQ(QW/YW)10-15-1.5 | 10 | 15 | 2900 | 1.5 | |
| 25WQ(QW/YW)10-20-2.2 | 10 | 20 | 2900 | 2.2 | |
| 32 | 32WQ(QW/YW)8-12-0.75 | 8 | 12 | 2900 | 0.75 |
| 32WQ(QW/YW)6-15-1.1 | 6 | 15 | 2900 | 1.1 | |
| 32WQ(QW/YW)12-15-1.5 | 12 | 15 | 2900 | 1.5 | |
| 32WQ(QW/YW)10-20-2.2 | 10 | 20 | 2900 | 2.2 | |
| 40 | 40WQ(QW/YW)10-10-0.75 | 10 | 10 | 2900 | 0.75 |
| 40WQ(QW/YW)8-15-1.1 | 8 | 15 | 2900 | 1.1 | |
| 40WQ(QW/YW)8-20-1.5 | 8 | 20 | 2900 | 1.5 | |
| 40WQ(QW/YW)12-15-1.5 | 12 | 15 | 2900 | 1.5 | |
| 40WQ(QW/YW)15-20-2.2 | 15 | 20 | 2900 | 2.2 | |
| 50 | 50WQ(QW/YW)27-5-0.75 | 27 | 5 | 2900 | 0.75 |
| 50WQ(QW/YW)20-7-0.75 | 20 | 7 | 2900 | 0.75 | |
| 50WQ(QW/YW)15-8-0.75 | 15 | 8 | 290 | 0.75 | |
| 50WQ(QW/YW)10-10-0.75 | 10 | 10 | 2900 | 0.75 | |
| 50WQ(QW/YW)10-12-1.1 | 10 | 12 | 2900 | 1.1 | |
| 50WQ(QW/YW)33-7-1.1 | 33 | 7 | 2900 | 1.1 | |
| 50WQ(QW/YW)40-7-1.5 | 40 | 7 | 2900 | 1.5 | |
| 50WQ(QW/YW)25-10-1.5 | 25 | 10 | 2900 | 1.5 | |
| 50WQ(QW/YW)20-15-1.5 | 20 | 15 | 2900 | 1.5 | |
| 50WQ(QW/YW)15-15-1.5 | 15 | 15 | 2900 | 1.5 | |
| 50WQ(QW/YW)10-18-1.5 | 10 | 18 | 2900 | 1.5 | |
| 50WQ(QW/YW)15-20-2.2 | 15 | 20 | 2900 | 2.2 | |
| 50WQ(QW/YW)15-18-2.2 | 15 | 18 | 2900 | 2.2 | |
| 50WQ(QW/YW)15-25-2.2 | 15 | 25 | 2900 | 2.2 | |
| 50WQ(QW/YW)27-15-2.2 | 27 | 15 | 2900 | 2.2 | |
| 50WQ(QW/YW)30-14-2.2 | 30 | 14 | 2900 | 2.2 | |
| 50WQ(QW/YW)42-9-2.2 | 42 | 9 | 2900 | 2.2 | |
| 50WQ(QW/YW)30-10-2.2 | 30 | 10 | 2900 | 2.2 | |
| 50WQ(QW/YW)20-22-3 | 20 | 22 | 2900 | 3 | |
| 50WQ(QW/YW)25-18-3 | 25 | 18 | 2900 | 3 | |
| 50WQ(QW/YW)15-30-3 | 15 | 30 | 2900 | 3 | |
| 50WQ(QW/YW)25-20-4 | 25 | 20 | 2900 | 4 | |
| 50WQ(QW/YW)30-18-4 | 30 | 18 | 2900 | 4 | |
| 50WQ(QW/YW)40-15-4 | 40 | 15 | 2900 | 4 | |
| 50WQ(QW/YW)20-30-5.5 | 20 | 30 | 2900 | 5.5 | |
| 50WQ(QW/YW)25-25-5.5 | 25 | 25 | 2900 | 5.5 | |
| 50WQ(QW/YW)20-40-7.5 | 20 | 40 | 2900 | 7.5 | |
| 50WQ(QW/YW)25-35-7.5 | 25 | 35 | 2900 | 7.5 | |
| 50WQ(QW/YW)30-30-7.5 | 30 | 30 | 2900 | 7.5 | |
| 50WQ(QW/YW)30-40-7.5 | 30 | 40 | 2900 | 7.5 | |
| 65 | 65WQ(QW/YW)25-10-1.5 | 25 | 10 | 2900 | 1.5 |
| 65WQ(QW/YW)35-7-2.2 | 35 | 7 | 2900 | 2.2 | |
| 65WQ(QW/YW)30-10-2.2 | 30 | 10 | 2900 | 2.2 | |
| 65WQ(QW/YW)25-15-2.2 | 25 | 15 | 2900 | 2.2 | |
| 65WQ(QW/YW)40-9-3 | 40 | 9 | 2900 | 3 | |
| 65WQ(QW/YW)35-10-3 | 35 | 10 | 2900 | 3 | |
| 65WQ(QW/YW)37-13-3 | 37 | 13 | 2900 | 3 | |
| 65WQ(QW/YW)30-22-4 | 30 | 22 | 2900 | 4 | |
| 65WQ(QW/YW)40-15-4 | 40 | 15 | 2900 | 4 | |
| 65WQ(QW/YW)25-30-5.5 | 25 | 30 | 2900 | 5.5 | |
| 65WQ(QW/YW)40-20-5.5 | 40 | 20 | 2900 | 5.5 | |
| 65WQ(QW/YW)32-25-5.5 | 32 | 25 | 2900 | 5.5 | |
| 65WQ(QW/YW)30-30-5.5 | 30 | 30 | 2900 | 5.5 | |
| 65WQ(QW/YW)40-30-7.5 | 40 | 30 | 2900 | 7.5 | |
| 65WQ(QW/YW)30-40-7.5 | 30 | 40 | 2900 | 7.5 | |
| 65WQ(QW/YW)30-45-11 | 30 | 45 | 2900 | 11 | |
| 65WQ(QW/YW)35-50-15 | 35 | 50 | 2900 | 15 | |
| 65WQ(QW/YW)35-60-18.5 | 35 | 60 | 2900 | 18.5 | |
| 80 | 80WQ(QW/YW)40-7-2.2 | 40 | 7 | 1450 | 2.2 |
| 80WQ(QW/YW)35-9-2.2 | 35 | 9 | 1450 | 2.2 | |
| 80WQ(QW/YW)30-12-2.2 | 30 | 12 | 1450 | 2.2 | |
| 80WQ(QW/YW)50-7-3 | 50 | 7 | 2900 | 3 | |
| 80WQ(QW/YW)45-10-3 | 45 | 10 | 2900 | 3 | |
| 80WQ(QW/YW)43-13-3 | 13 | 13 | 2900 | 3 | |
| 80WQ(QW/YW)40-15-4 | 40 | 15 | 2900 | 4 | |
| 80WQ(QW/YW)65-10-5.5 | 65 | 10 | 2900 | 5.5 | |
| 80WQ(QW/YW)50-20-5.5 | 50 | 20 | 2900 | 5.5 | |
| 80WQ(QW/YW)40-25-5.5 | 40 | 25 | 2900 | 5.5 | |
| 80WQ(QW/YW)30-30-5.5 | 30 | 30 | 2900 | 5.5 | |
| 80WQ(QW/YW)65-25-7.5 | 65 | 25 | 2900 | 7.5 | |
| 80WQ(QW/YW)80-15-7.5 | 80 | 15 | 2900 | 7.5 | |
| 80WQ(QW/YW)40-30-7.5 | 40 | 30 | 2900 | 7.5 | |
| 80WQ(QW/YW)30-40-7.5 | 30 | 40 | 2900 | 7.5 | |
| 80WQ(QW/YW)50-35-11 | 50 | 35 | 2900 | 11 | |
| 100 | 100WQ(QW/YW)70-6-3 | 70 | 6 | 1450 | 3 |
| 100WQ(QW/YW)85-10-4 | 85 | 10 | 1450 | 4 | |
| 100WQ(QW/YW)70-15-4 | 70 | 15 | 1450 | 4 | |
| 100WQ(QW/YW)100-10-5.5 | 100 | 10 | 1450/2900 | 5.5 | |
| 100WQ(QW/YW)65-15-5.5 | 65 | 15 | 1450/2900 | 5.5 | |
| 100WQ(QW/YW)120-7-7.5 | 120 | 7 | 1450/2900 | 7.5 | |
| 100WQ(QW/YW)100-10-7.5 | 100 | 10 | 1450/2900 | 7.5 | |
| 100WQ(QW/YW)85-15-7.5 | 85 | 15 | 1450/2900 | 7.5 | |
| 100WQ(QW/YW)80-20-7.5 | 80 | 20 | 1450/2900 | 7.5 | |
| 100WQ(QW/YW)100-15-7.5 | 100 | 15 | 1450/2900 | 7.5 | |
| 100WQ(QW/YW)100-20-11 | 100 | 20 | 1450/2900 | 11 | |
| 100WQ(QW/YW)100-25-11 | 100 | 25 | 1450/2900 | 11 | |
| 100WQ(QW/YW)120-25-15 | 120 | 25 | 1450/2900 | 15 | |
| 100WQ(QW/YW)100-30-15 | 100 | 30 | 1450/2900 | 15 | |
| 100WQ(QW/YW)120-30-18.5 | 120 | 30 | 1450/2900 | 18.5 | |
| 100WQ(QW/YW)100-35-18.5 | 100 | 35 | 1450/2900 | 18.5 | |
| 100WQ(QW/YW)100-40-22 | 100 | 40 | 1450/2900 | 22 | |
| 150 | 150WQ(QW/YW)150-7-7.5 | 150 | 7 | 1450 | 7.5 |
| 150WQ(QW/YW)145-9-7.5 | 1450 | 9 | 1450 | 7.5 | |
| 150WQ(QW/YW)110-15-7.5 | 110 | 15 | 1450 | 7.5 | |
| 150WQ(QW/YW)200-7-11 | 200 | 7 | 980 | 11 | |
| 150WQ(QW/YW)150-12-11 | 150 | 12 | 1450 | 11 | |
| 150WQ(QW/YW)200-10-15 | 200 | 10 | 1450 | 15 | |
| 150WQ(QW/YW)180-15-15 | 180 | 15 | 1450 | 15 | |
| 150WQ(QW/YW)180-20-18.5 | 180 | 20 | 1450 | 18.5 | |
| 150WQ(QW/YW)150-26-18.5 | 150 | 26 | 1450 | 18.5 | |
| 150WQ(QW/YW)180-25-22 | 180 | 25 | 1450 | 22 | |
| 150WQ(QW/YW)200-20-22 | 200 | 20 | 1450 | 22 | |
| 150WQ(QW/YW)240-20-30 | 240 | 20 | 1450 | 30 | |
| 150WQ(QW/YW)200-25-30 | 200 | 25 | 1450 | 30 | |
| 150WQ(QW/YW)150-35-37 | 150 | 35 | 1450 | 37 | |
| 150WQ(QW/YW)180-30-37 | 180 | 30 | 1450 | 37 | |
| 150WQ(QW/YW)180-40-45 | 180 | 40 | 1450 | 45 | |
| 150WQ(QW/YW)200-38-45 | 200 | 38 | 1450 | 45 | |
| 200 | 200WQ(QW/YW)300-7-11 | 300 | 7 | 980 | 11 |
| 200WQ(QW/YW)250-11-15 | 250 | 11 | 1450 | 15 | |
| 200WQ(QW/YW)300-8-15 | 300 | 8 | 1450 | 15 | |
| 200WQ(QW/YW)250-15-18.5 | 250 | 15 | 1450 | 18.5 | |
| 200WQ(QW/YW)300-9-18.5 | 300 | 9 | 1450 | 18.5 | |
| 200WQ(QW/YW)400-10-22 | 400 | 10 | 1450 | 22 | |
| 200WQ(QW/YW)360-12-22 | 360 | 12 | 1450 | 22 | |
| 200WQ(QW/YW)300-15-22 | 300 | 15 | 1450 | 22 | |
| 200WQ(QW/YW)450-10-30 | 450 | 10 | 1450 | 30 | |
| 200WQ(QW/YW)400-13-30 | 400 | 13 | 1450 | 30 | |
| 200WQ(QW/YW)300-18-30 | 300 | 18 | 1450 | 30 | |
| 200WQ(QW/YW)250-22-33 | 250 | 22 | 1450 | 30 | |
| 200WQ(QW/YW)450-15-37 | 450 | 15 | 1450 | 37 | |
| 200WQ(QW/YW)300-25-37 | 300 | 25 | 1450 | 37 | |
| 200WQ(QW/YW)400-20-45 | 400 | 20 | 1450 | 45 | |
| 200WQ(QW/YW)350-25-45 | 350 | 25 | 1450 | 45 | |
| 200WQ(QW/YW)250-35-45 | 250 | 35 | 1450 | 45 | |
| 200WQ(QW/YW)450-22-55 | 450 | 22 | 1450 | 55 | |
| 200WQ(QW/YW)400-25-55 | 400 | 25 | 1450 | 55 | |
| 200WQ(QW/YW)300-40-55 | 300 | 40 | 1450 | 55 | |
| 250 | 250WQ(QW/YW)600-9-30 | 600 | 9 | 980 | 30 |
| 250WQ(QW/YW)600-12-37 | 600 | 12 | 980 | 37 | |
| 250WQ(QW/YW)600-15-45 | 600 | 15 | 1450 | 45 | |
| 250WQ(QW/YW)600-20-55 | 600 | 20 | 1450 | 55 | |
| 250WQ(QW/YW)600-25-75 | 600 | 25 | 1450 | 75 | |
| 250WQ(QW/YW)600-30-75 | 600 | 30 | 1450 | 75 | |
| 300 | 300WQ(QW/YW)800-7-30 | 800 | 7 | 980 | 30 |
| 300WQ(QW/YW)800-9-37 | 800 | 9 | 980 | 37 | |
| 300WQ(QW/YW)800-12-45 | 800 | 12 | 1450 | 45 | |
| 300WQ(QW/YW)680-15-45 | 680 | 15 | 1450 | 45 | |
| 300WQ(QW/YW)800-15-55 | 800 | 15 | 1450 | 55 | |
| 300WQ(QW/YW)600-20-55 | 600 | 20 | 1450 | 55 | |
| 300WQ(QW/YW)800-20-75 | 800 | 20 | 1450 | 75 | |
| 300 | 300WQ(QW/YW)800-25-90 | 800 | 25 | 1450 | 90 |
| 300WQ(QW/YW)950-20-90 | 950 | 20 | 1450 | 90 | |
| 300WQ(QW/YW)1000-25-110 | 1000 | 25 | 1450 | 110 | |
| 350 | 350WQ(QW/YW)1100-10-55 | 1100 | 10 | 980 | 55 |
| 350WQ(QW/YW)1180-13-75 | 1180 | 13 | 980 | 75 | |
| 350WQ(QW/YW)1200-15-90 | 1200 | 15 | 980 | 90 | |
| 350WQ(QW/YW)1200-20-110 | 1200 | 20 | 980 | 110 | |
| 400 | 400WQ(QW/YW)1800-7-55 | 1800 | 7 | 740 | 55 |
| 400WQ(QW/YW)1800-10-75 | 1800 | 10 | 740 | 75 | |
| 400WQ(QW/YW)1800-12-90 | 1800 | 12 | 740 | 90 | |
| 400WQ(QW/YW)2000-10-90 | 2000 | 10 | 740 | 90 | |
| 400WQ(QW/YW)2000-13-110 | 2000 | 13 | 740 | 110 | |
| 400WQ(QW/YW)200-15-132 | 2000 | 15 | 740 | 132 | |
| 450 | 450WQ(QW/YW)2300-10-90 | 2300 | 10 | 740 | 90 |
| 450WQ(QW/YW)2250-11-110 | 2250 | 11 | 740 | 110 | |
| 450WQ(QW/YW)2260-14-132 | 2260 | 14 | 740 | 132 | |
| 500 | 500WQ(QW/YW)2500-10-110 | 2500 | 10 | 740 | 110 |
| 500WQ(QW/YW)2500-16-160 | 2500 | 16 | 740 | 160 | |
| 600 | 600WQ(QW/YW)5400-8-185 | 5400 | 8 | 740 | 185 |
| 600WQ(QW/YW)4000-12-200 | 4000 | 12 | 740 | 200 |
